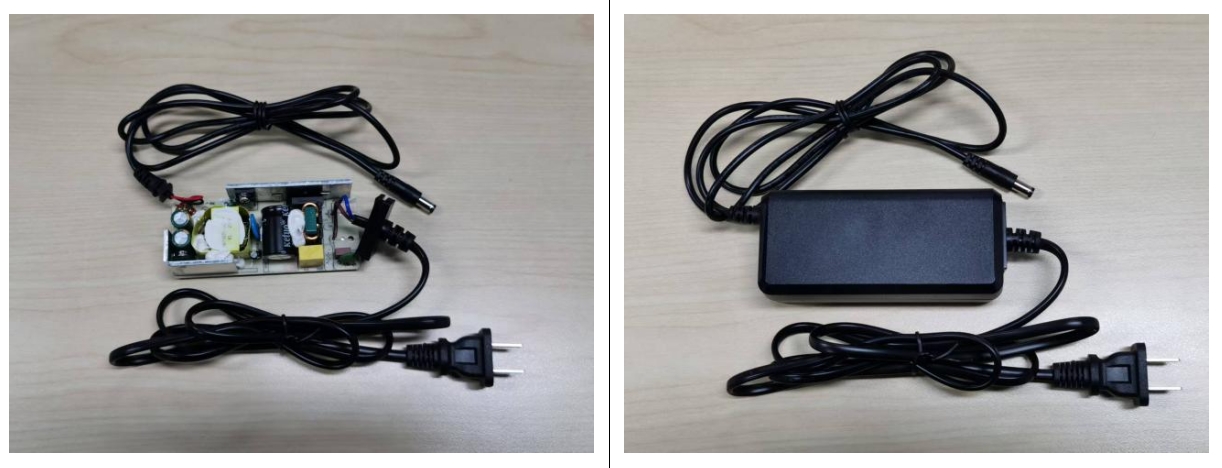

The high-voltage planar MOS CT7N65FL of Coretong Electronics has passed comprehensive functional, performance and various certification tests on the customer's economical printer power supply solution

Power Solution:

Input: AC220V/50Hz

Output: DC24V/2.2A

7A 650V N Channel MOSFET

N-Channel MOSFET  TO-220FL

 VDS=650V    ID=7A@VGS=10V   RDS(ON)(Typ)=1.1Ω @VGS =10V

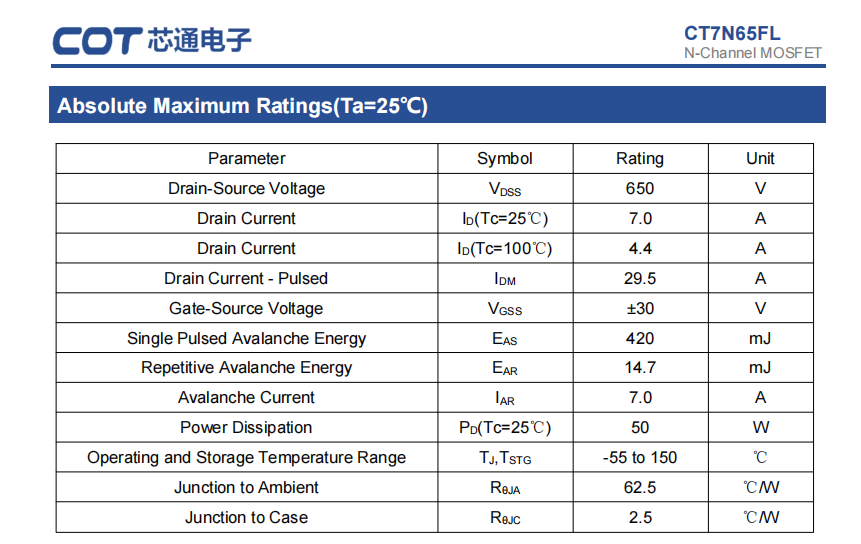

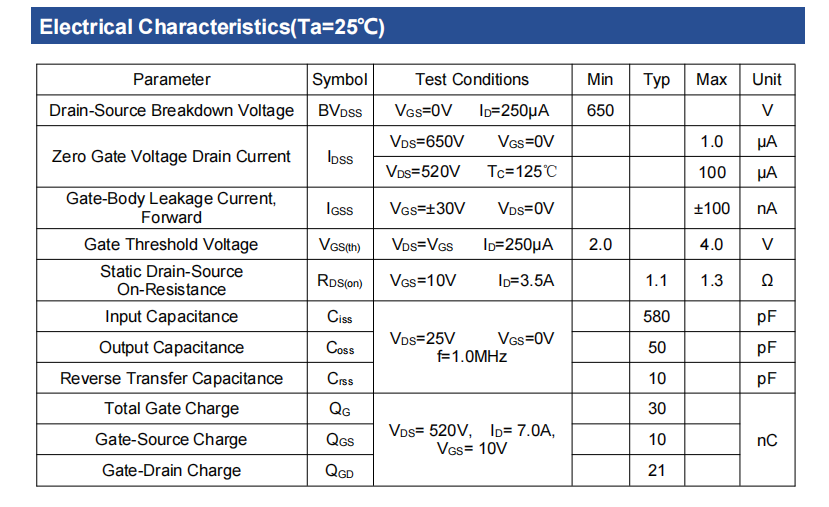

Coretong high-voltage planar MOS CT7N65FL is widely used in power supply, PFC correction, high-current, high-frequency switching applications and other related solutions and occasions, and the parameters are detailed in the following figure:
